Atlas Baby, Light Skin

Atlas Baby, a life-size PALS manikin from 3B Scientific, represents a 38-week newborn. Measuring approximately 48 cm in length and weighing around 2.5 kg, it features an intubatable head, a CPR-capable chest, IV arms, and IO/IM legs. A removable umbilical stump with umbilical veins and arteries allows for umbilical catheter insertion and infusion practice. The ribcage's unique design enables realistic compression during CPR. Additionally, Atlas Baby's airway is anatomically accurate, with a funnel-shaped larynx and detailed structures including the tongue, nasopharynx, oropharynx, uvula, epiglottis, vocal cords, esophagus, trachea, and lungs. You can perform both oral and nasal intubation using basic and advanced airway management adjuncts.

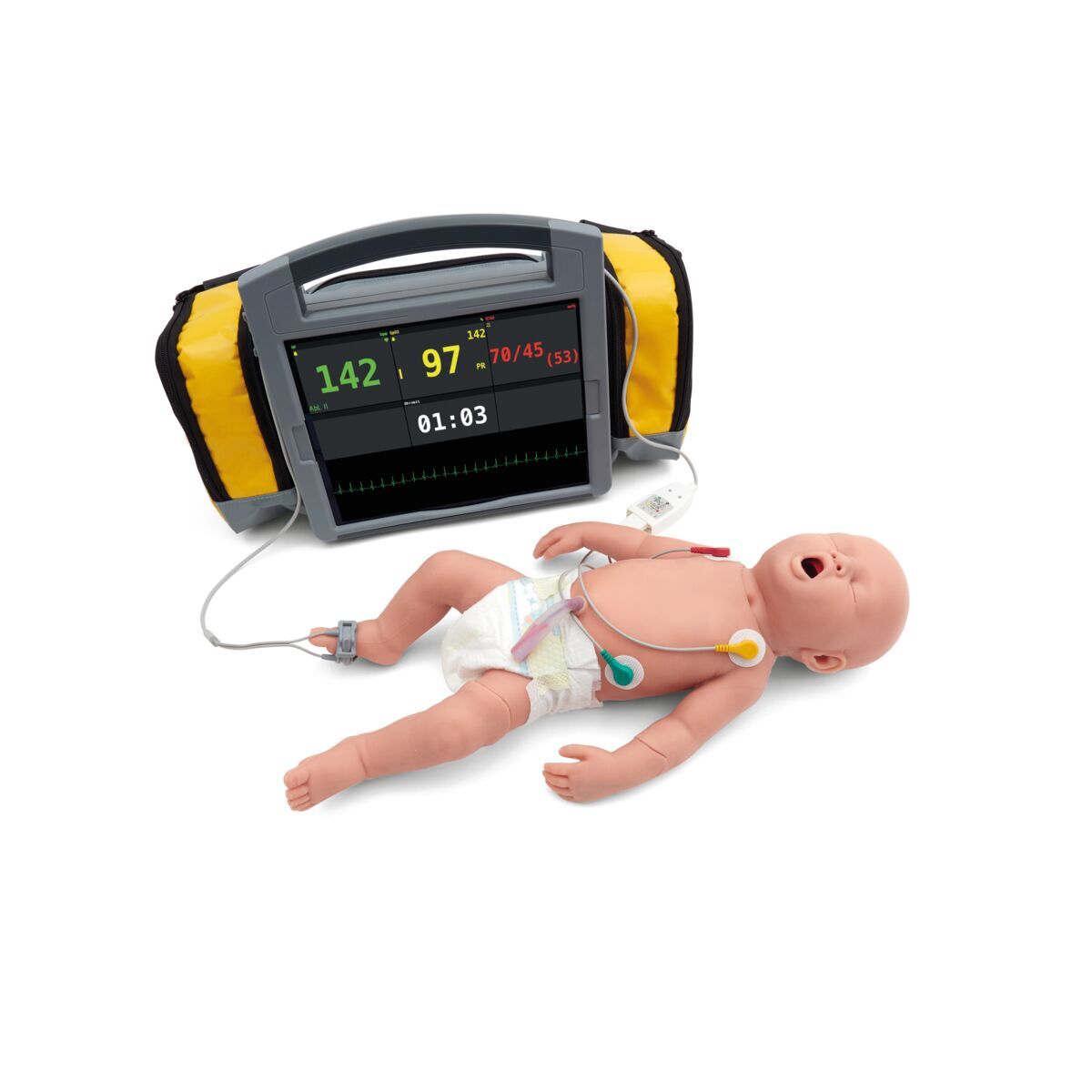

Atlas Baby is wireless and integrated with REALITi 360. Real-time CPR feedback (both compression and ventilation values) go directly into REALITi 360 and the pulse is controlled by the REALITi 360 settings on the controller. The combination of these two products offers a complete solution for AHA/ERC compliant PALS/EPALS training. The whole system can be used straight out of the box and requires no sophisticated technical setup and maintenance.

REALITi 360 mimics a selection of different patient monitors, defibrillators and ventilators used in pre-hospital and clinical environments. This means that no real devices and no additional connectors are required to deliver training. This saves money, complexity, and the need to source real patient monitors and defibrillators from in/outside the hospital. In addition to PALS-Algorithm training with ATLAS Baby, REALITi 360 on its own allows you to carry out different training for medical teams such as ALS, ACLS, ILS, NLS, ATLS, ECG-/Arrhythmia recognition and treatment, synchronized cardioversion, cardiac pacing and even team training.

Atlas Baby is fully mobile supporting effortless in-situ training.

Elevate your PALS training with Atlas Baby and REALITi 360 – a complete solution for your training of medical teams

Airway Management:

• Realistic airways
• Oral and nasal intubation
• Compatible to use OPA, NPA, iGel, LMA, LT
• Esophageal intubation
• Right mainstem intubation

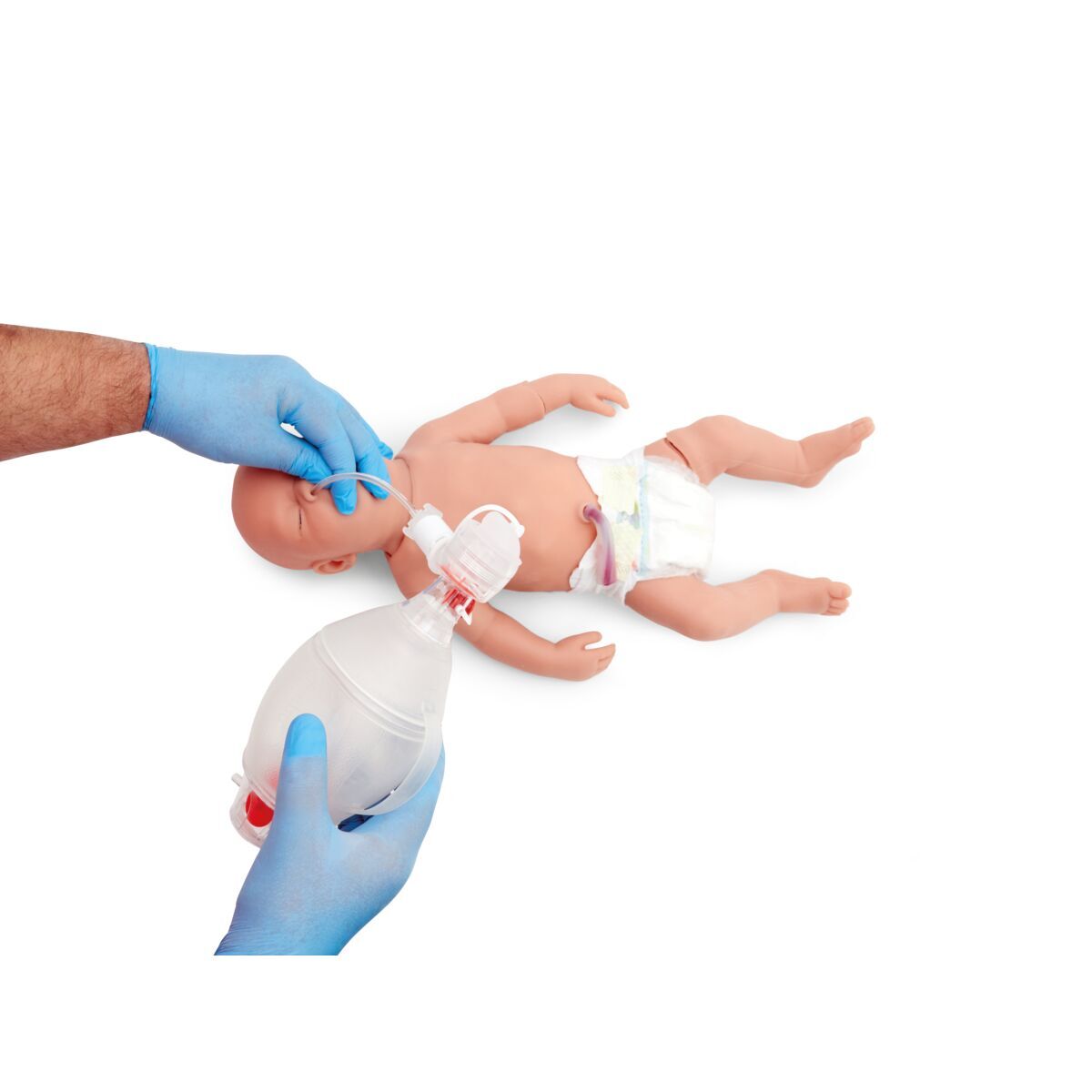

• BVM ventilation
• Gastric insufflation

Ventilation:

• Realistic chest expansion/rise and fall
• EtCO2 waveforms *
• SpO2 waveforms *

CPR:

• Hand position detection *
• Chest compression
• Real-time Quality CPR feedback *
• Debriefing (in a summary performance report) *

Cardiac:

• Defibrillation simulation *
• ECG recognition
• Vital sign monitoring *
• Assessment and treatment of more than 70 arrhythmias *
• Cardioversion and pacing *

Circulatory skills:

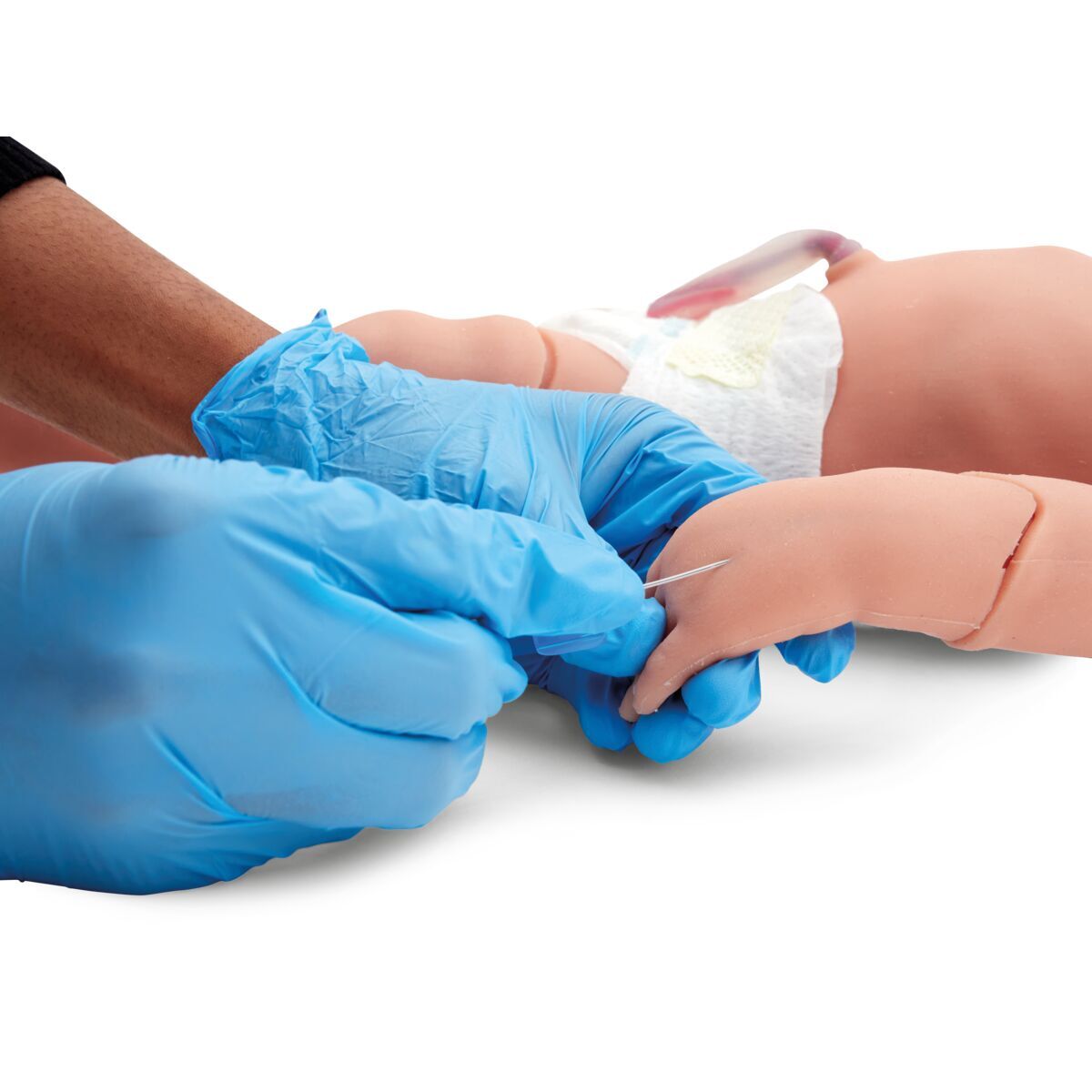

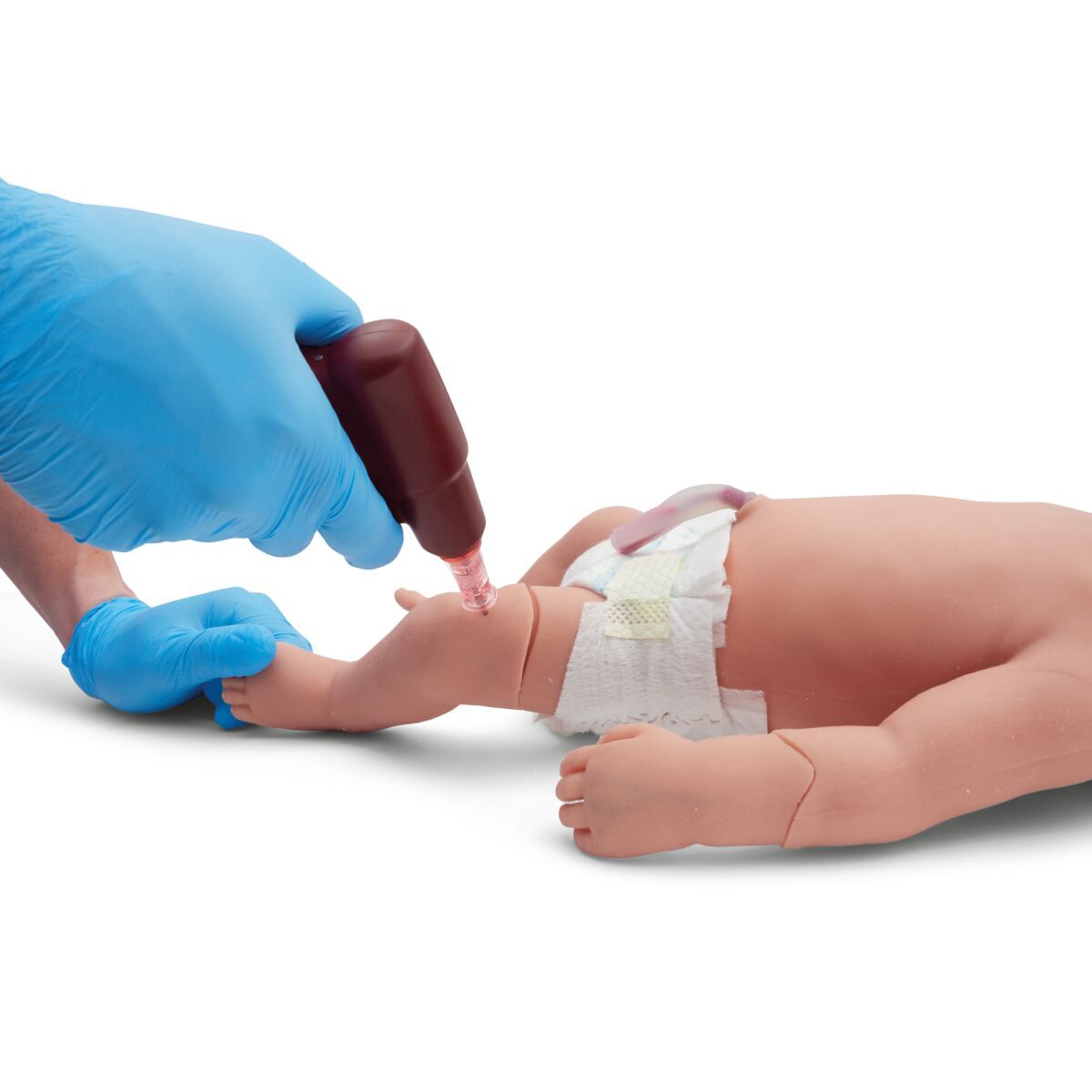

• IV, IM and IO sites (distal femur IO site and tibial IO site)
• Umbilical Vein Catheterization
• Blood pressure*
• Adjustable BP levels (systolic/diastolic) *
• Automated brachial pulse (synchronized with ECG)*
• Variable pulse rates *
• Variable pulse strength *

Neurological:

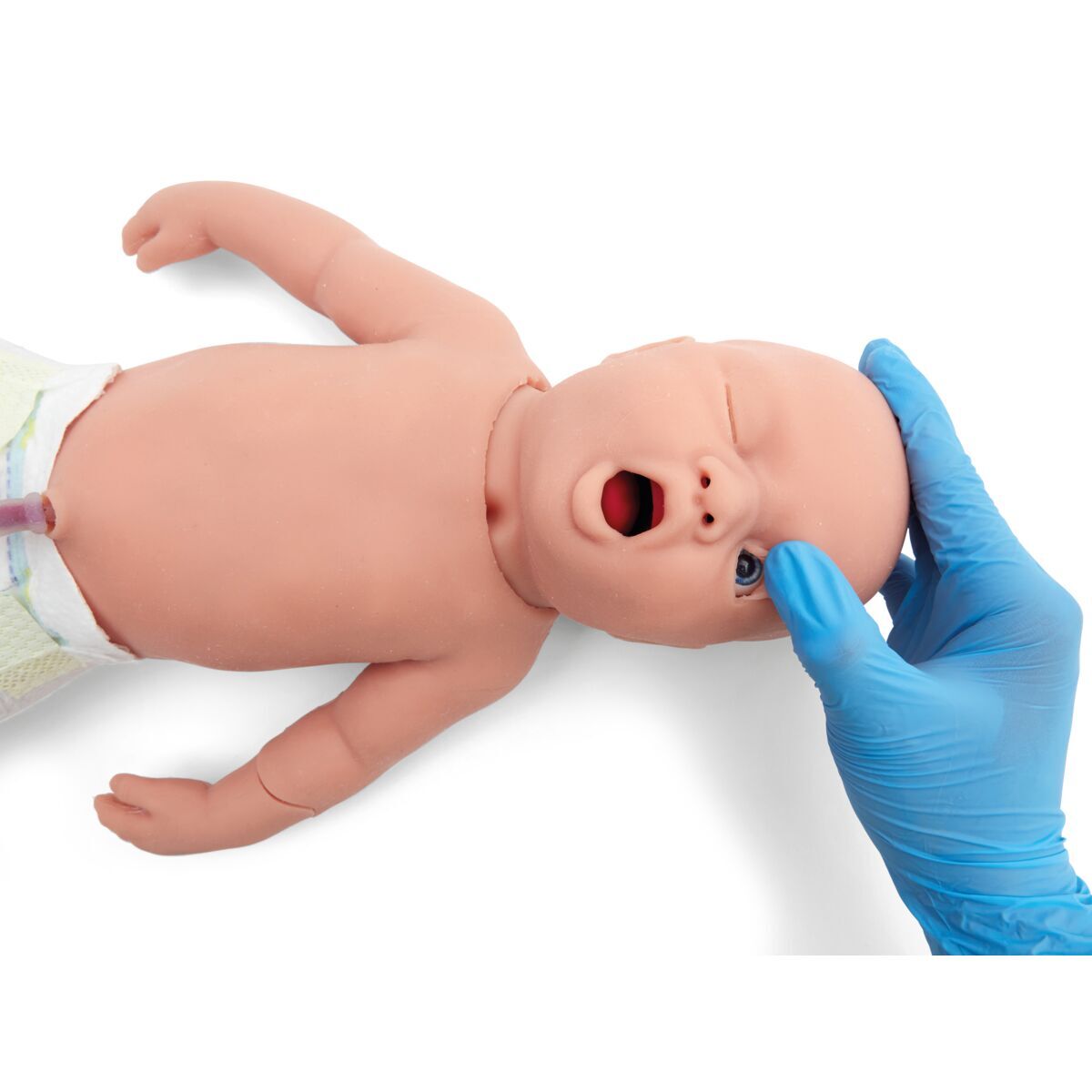

• Tristate pupillary assessment (Normal/Constricted/Dilated)

Simulation Control:

• Patient monitor with configurable vital sign display (HR, BP, SPO2 and ETCO2) *
• Pre-set scenarios included *
• Pre-programmable scenarios *
• Modify scenarios on-the-fly *
• Physiological control over parameters *
• Enrich simulation through media *
• Event log *

*In combination with REALITi 360

Three REALITi 360 options are available for combining with Atlas Baby:


1. REALITi Go (1022862) – Start your simulation training with the basics

Complete with 6 generic screens. Instructors have a set-up to prepare course participants effectively and realistically for ALS and other tasks in the preclinical and clinical area.

2. REALITi Plus (1022815) – Improve your simulation activities.

Add 1 premium monitor or defibrillator screen of your choice to your training

3. REALITi Pro (1022816) – Enhance your simulation experience

With 5 premium screens and a video-debriefing module, REALITi Pro offers a highly advanced and portable solution for medical instructors. Fully equipped hardware and software kit for facilitating detailed debriefings, video streaming and evaluation of training courses.

Delivery Content:

• Atlas Baby Manikin
• Replacement Set (1x IV arm, 1x IM Insert, 1x IO leg)
• Carry Bag
• Lubricant
• USBC Charger
• Adapter
• Diaper
